Norweld Ute Trays Feature
1200MM Draw
Store tools, shovels, spare parts or recovery gear in a 1200mm dust resistant trundle draw. This draw is tough and can with stand up to 200kg of weight.
Extruded Sideboards
Custom-designed aluminium extruded sideboards with built in stiffeners.
40L or 58L Poly Watertank
Whether cleaning up between jobs sites or having clean water on weekend adventures, having water on the road is an invaluable resource.
One-Piece Floor
A 4mm high tensile single piece plate floor, means your tray is built tough.

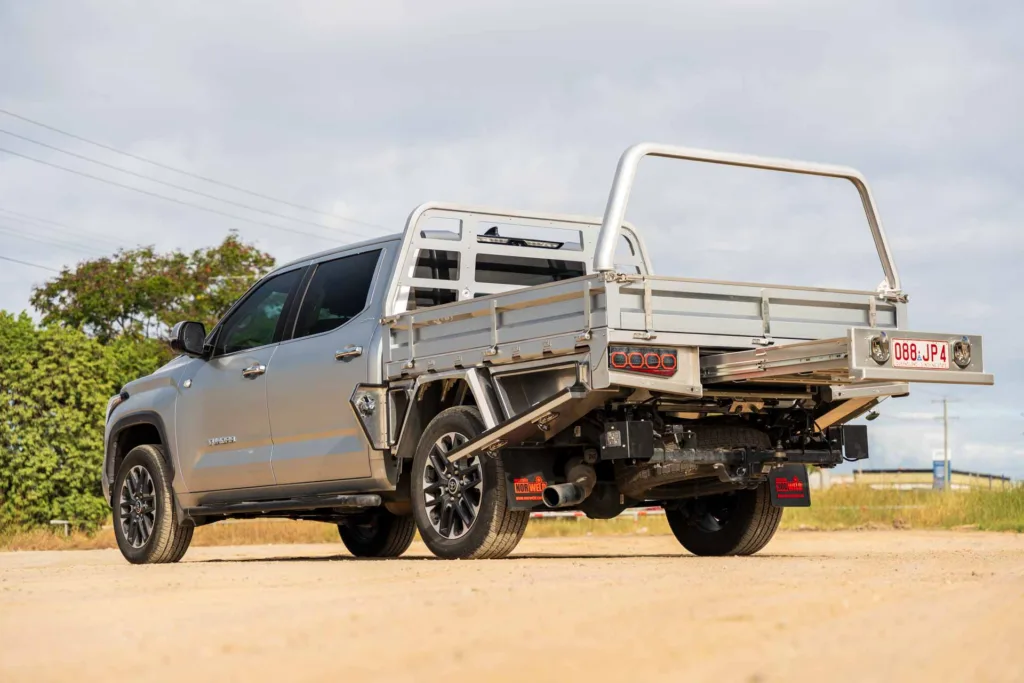

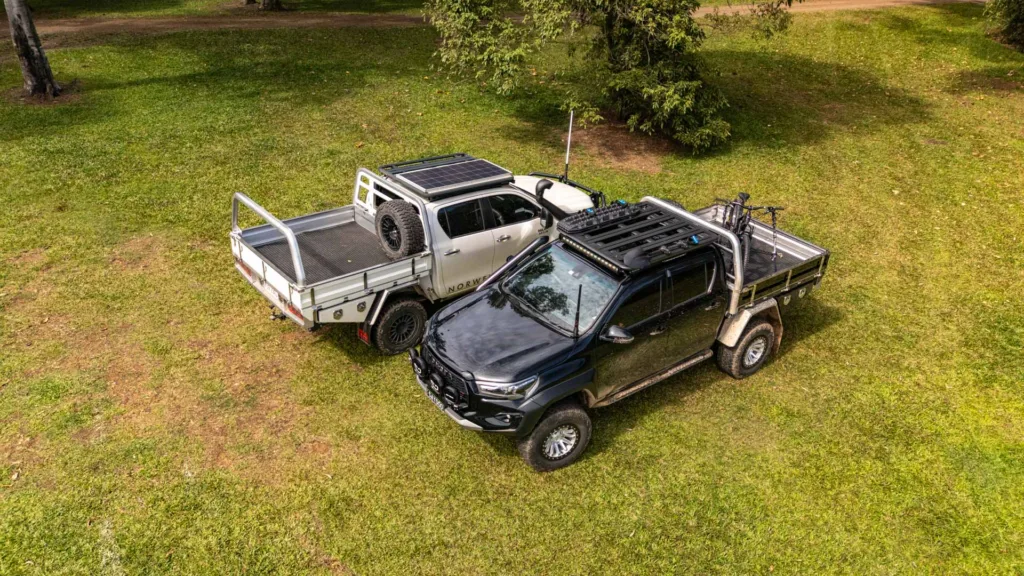

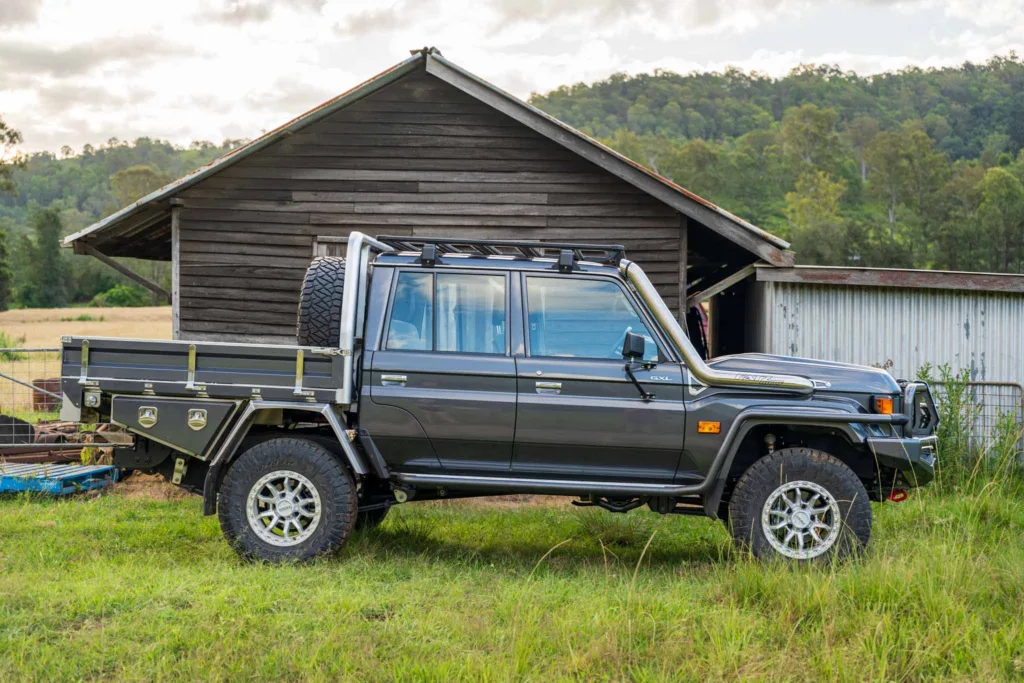

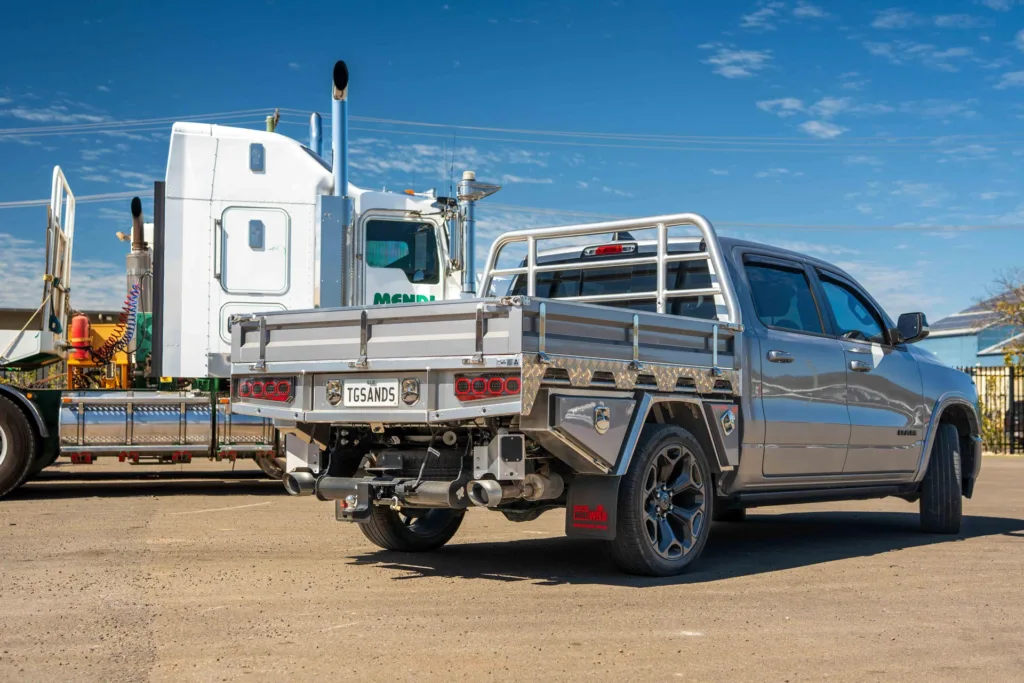

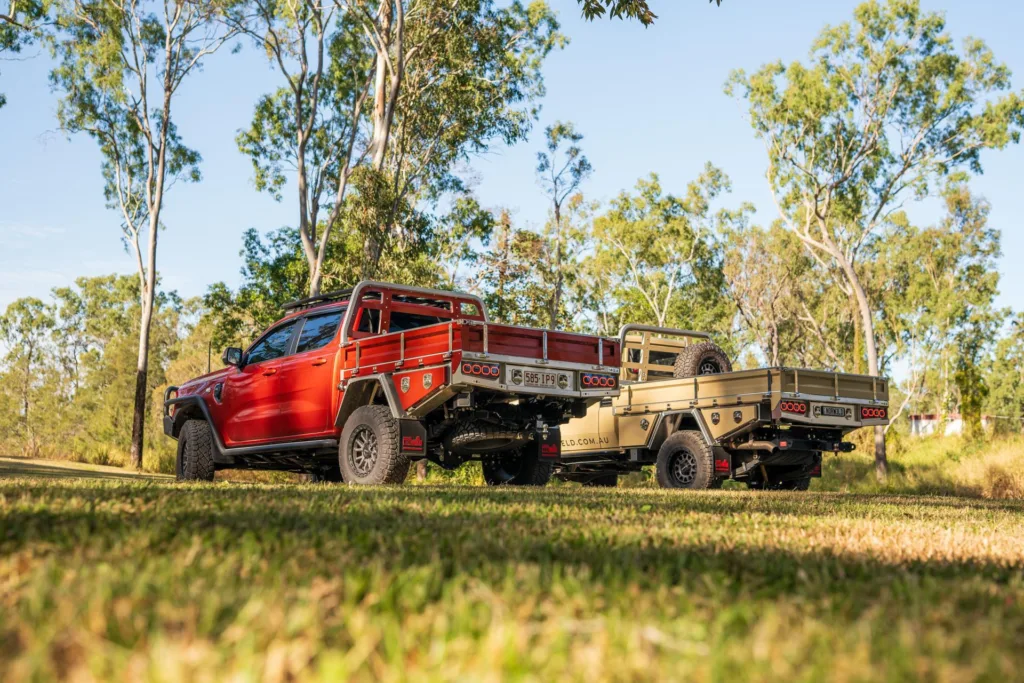

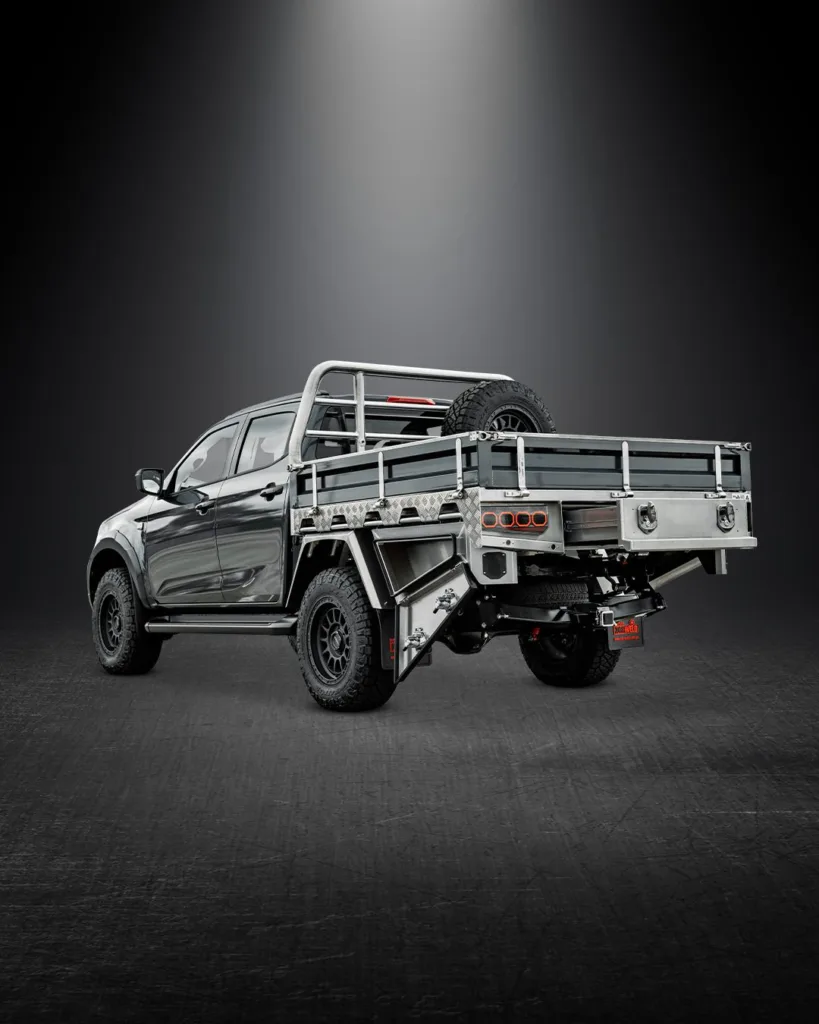

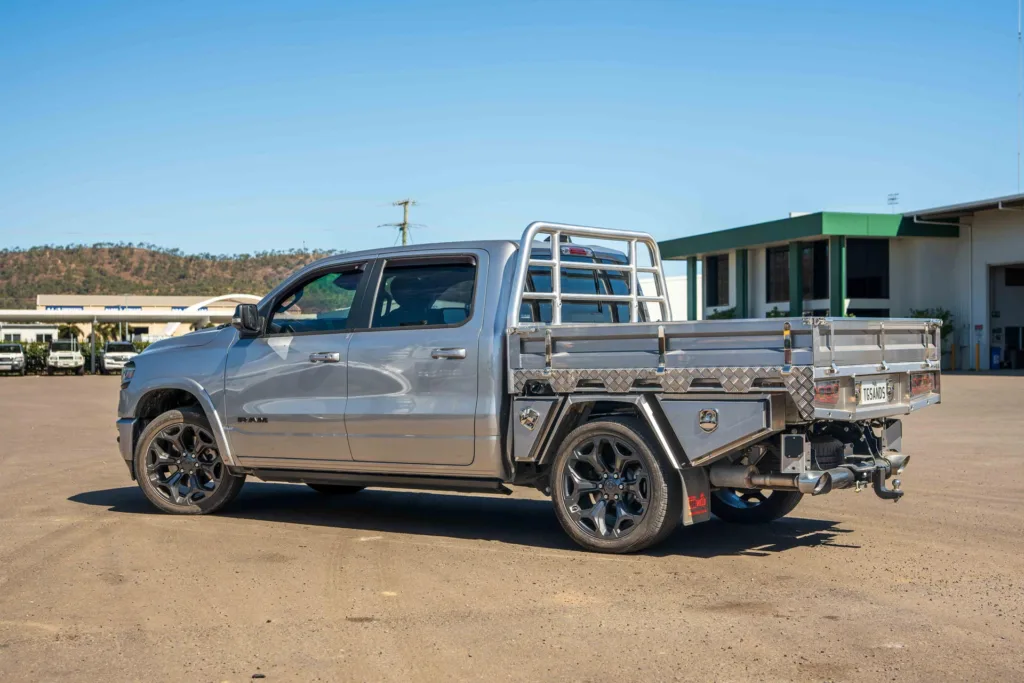

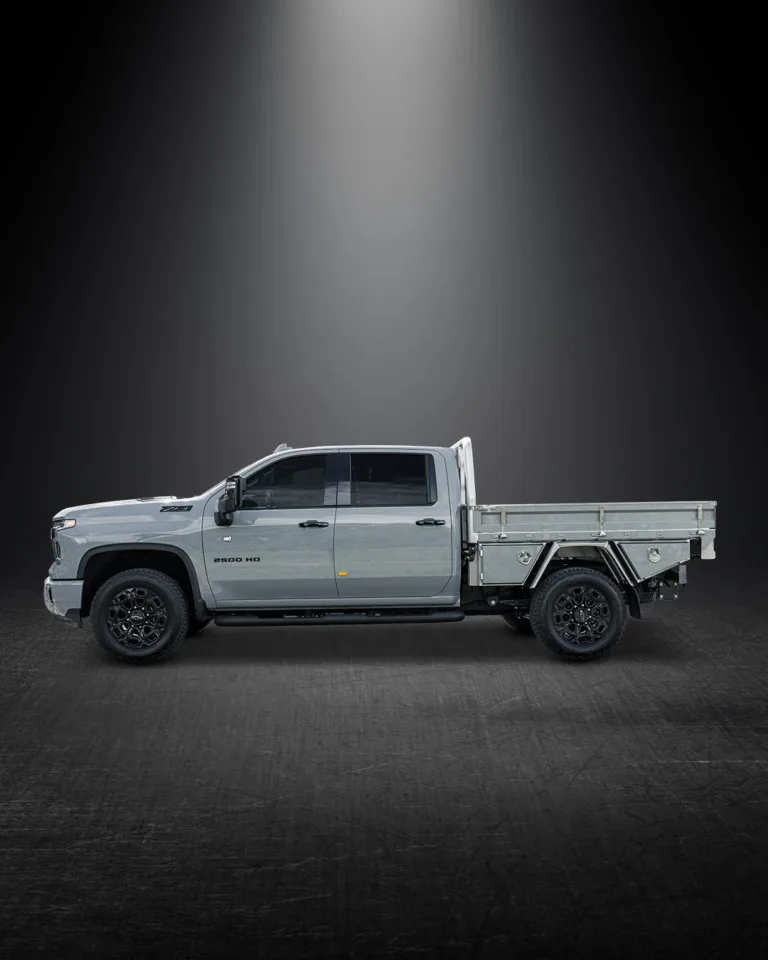

GALLERY
- Functionality – We understand our builds need to increase the functionality of your existing Ute, extending its features.
- Versatility – Our builds need to allow for changing demands, as you move from the work week to weekend adventures, from time with mates, to moments with the family.
- Durability – Although we use aluminium which is lighter than steel, we build them as tough and we back this with a lifetime warranty on our workmanship.
- Quality – Because we live it and we use it, quality matters. It’s the little things that the industry has come to know as “The Norweld Difference”.
- Style – It’s got to look good, we want you to turn heads wherever you go and to also feel good (and we’re talking about on the inside).
Request a quote for your Ute Tray
Check out your options for a Deluxe or Deluxe Plus ute tray, With Norweld-owned branches in Cairns, Townsville, Brisbane, Sydney, Melbourne, Adelaide, Perth and various agents nationwide will ensure you are never too far from the support you need.TRAY FAQ’S

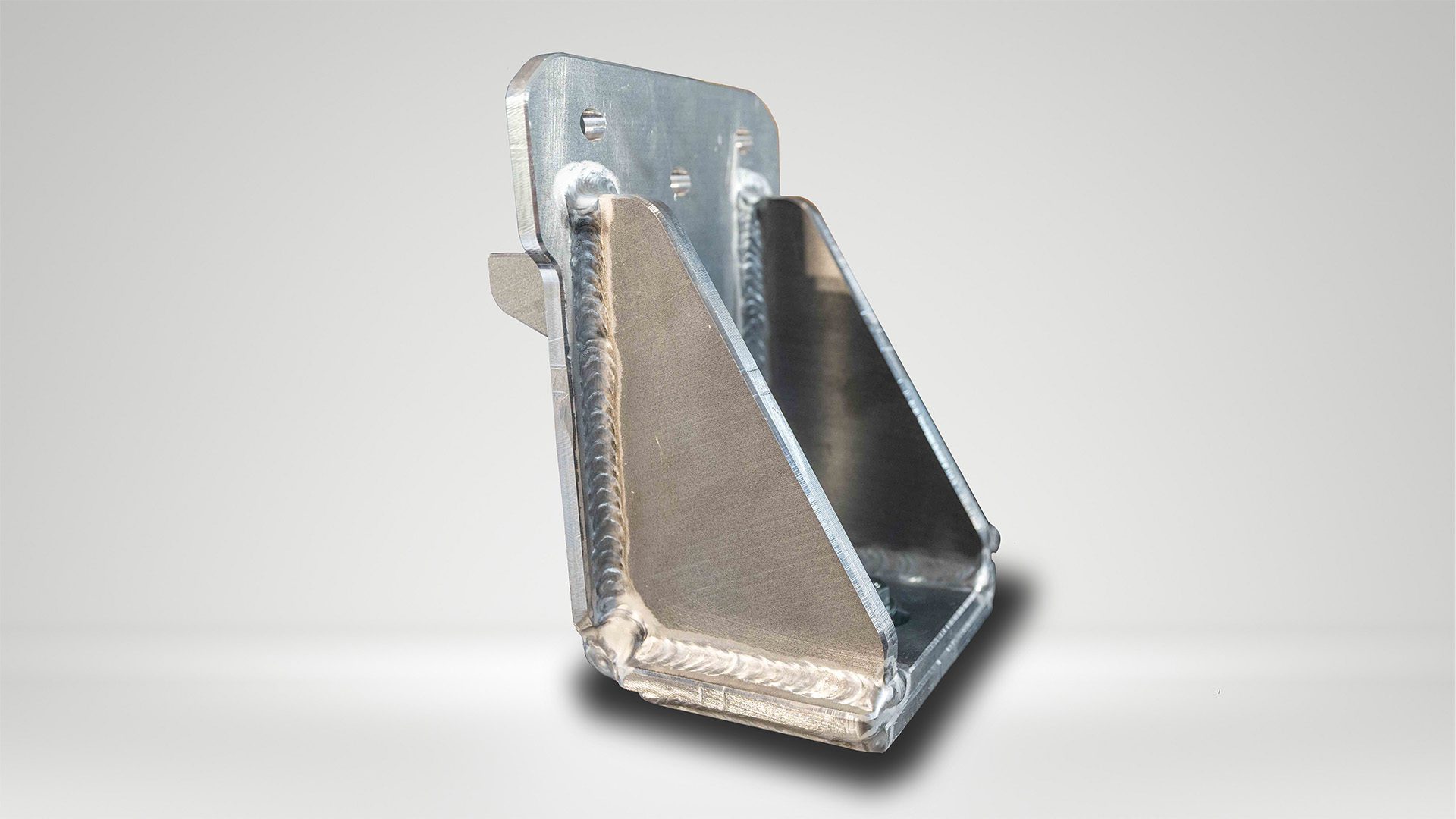

Our mounts bolt to the vehicle and then the tray bolts to the mounts. This eliminates any cracking. Fully welded mounts tend to flex and crack; this is why we have developed a process of bolting the mounts to the car and the tray to the mounts.
This is a proven design that has been refined over the years with countless hours of testing and R & D in some of Australia’s harshest conditions.
No. the spare tyre mounting configuration stays the same on all dual cab except for the Landcruisers. We move the spare tyre mount onto the headboard for the Landcruisers. Under tray tyre mounting options are not available for the 79 series dual and single cabs.
Yes, they go from the front of the headboard to the back of the tray. Please see our tray dimension sheet for more info.

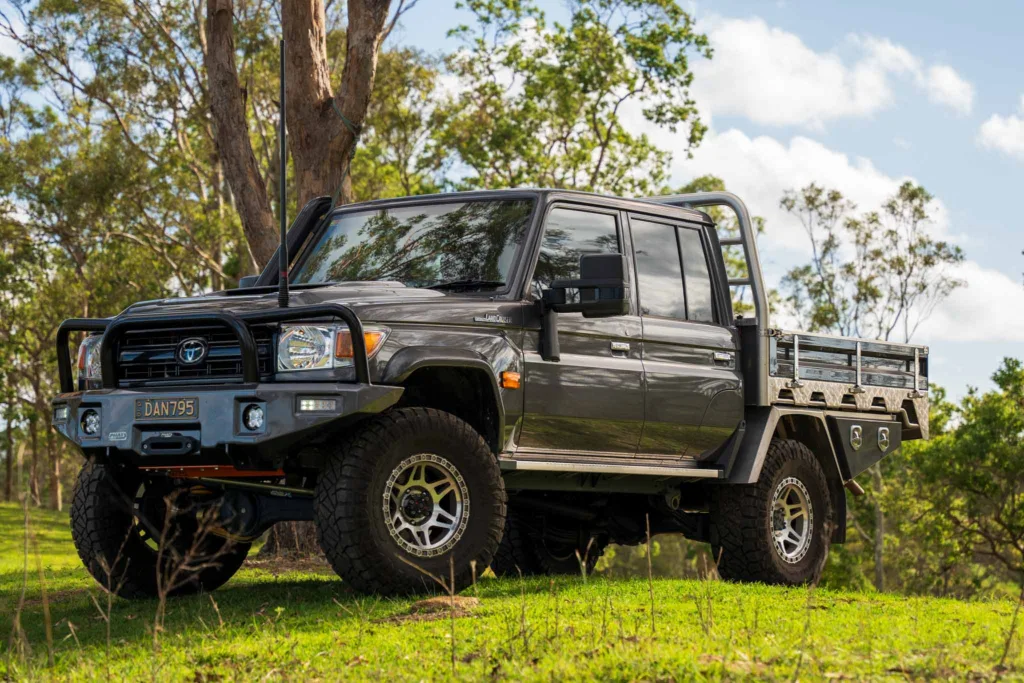

Our Landcruiser trays are 1850 wide and 1826 long for Dual- 2526 long for Single Cab.
BT50, Ranger, Dmax, New Hilux, Colorado and Navara Dual Cab trays are 1850mm wide and 1826mm long, space cab is 2126
Norweld can relocate most reverse cameras and sensors found on common utes, however as they are relocated into a non-factory position, they might not operate as designed. Rear radar units found on the new BT-50 and DMAX might require a dealer to perform a recalibration. Please contact the sales team for more info.
Our trays and canopies allow for transfers between vehicles of similar lengths. For instance, a BT50 package will fit a New Hilux. Similar model sizes listed in the question above. If you keep buying dual cabs they will fit.
Unfortunately no – we have designed our tray for the optimal size in similar sizes to the dual cab genuine trays. We are mindful of rear overhang once a canopy is fitted and also GVM of the vehicles once loaded. Longer trays usually mean that the rear is subject to more weight and this has an adverse effect on handling and tyre wear in some cases. Rear axle weight limits also need to be taken into account.
Landcruisers are 1015mm (from floorboard to the top of the headboard).- A Landcruiser with a 2-inch Lift and 33-inch tyres will have an approximate headboard height of 2110mm and with a tradie roof rack, the overall height is 2240mm.
All other makes are 890mm (front floorboard to the top of the headboard).- A BT50 with a 2.5 inch lift and 32 inch tyres will have an approximate headboard height of 1960mm and with a tradie roof rack the overall height is 2140mm. * all heights are approximates based on our own vehicles
Yes – We use both OEM and our own Fuel Filler systems, dependent on the vehicle. You may experience some ‘clicking’ depending on how the pumps are set up to flow at each station. Most vehicles will not experience any issues.
Hi-Flow pumps aren’t recommended for non-commercial vehicles. Fuel delivery from these pumps is between 80 and 130 litres a minute which exceeds most vehicles’ tank vent systems which can lead to fuel purging from the filler. Whilst it is possible your existing style side may allow for filling with Hi-Flow, most relocated fuel fillers will not accommodate these pumps. Our Fuel Filler systems are designed for regular flow pumps.
If we are fitting a new Norweld tray then your removal of the old tray is included. We remove it as quickly as possible and take no responsibility for any damages to the old tray. Disposal and or transport home is your responsibility should you wish to keep it.
Yes, all our trays come standard with premium LED tail lights and number plate lights, Our install kit provides patch leads and the plugs on the wiring for a true plug and play install.
Our headboards are our own design which is CNC mandrel bent for the best fit and high quality bends as possible. We don’t change our standard sizes as our machinery and tooling are set up for our standard designs. Our signature look will not be altered.
We offer the sideboards and tool box lids as painted extras. We don’t offer full tray painting as an option. If you are running aggressive all terrain or mud terrain tyres we recommend adding additional mud flaps behind the front wheels to prevent stone chips. A Stone Stomper or similar will prevent damage to the tray or canopy from your trailer throwing rocks.
We do not offer powder coating as an option. We prefer paint and we use high quality 2 pac pack systems for the best finish. We do not offer full-colour coding of the trays. You may do this once delivery is taken.
We have a 40 ltr poly water tank option for our dual cab trays and a 58 ltr model for all other trays. Tapered behind the wheel water tanks have been discontinued and removed from our range. We do not offer stainless water tanks as an option. We have spent many years of development and rigorous testing on the harshest conditions to come up with these options.
If you are fitting a tray only it may not be needed. If you are fitting a tray and canopy we highly recommend it. Tray and canopy packages combined with typical 4×4 accessories increase the weight of a vehicle. A GVM upgrade is recommended on most makes and models to ensure trouble-free touring, and for your vehicle to remain legal when loaded. Any reputable 4×4 Accessory or Suspension Store can assist. We list approximate weights of our packages on our brochure and price list. Find more FAQs related to our ute trays here.

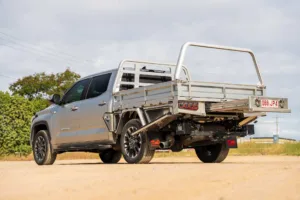

Currently we offer the Elite Tray for the following vehicles:
- Toyota Landcruiser 79 Series – Dual Cab – 2012 Onwards
- Toyota Landcruiser 79 Series – Dual Cab +300mm Chassis Extension – 2012 Onwards

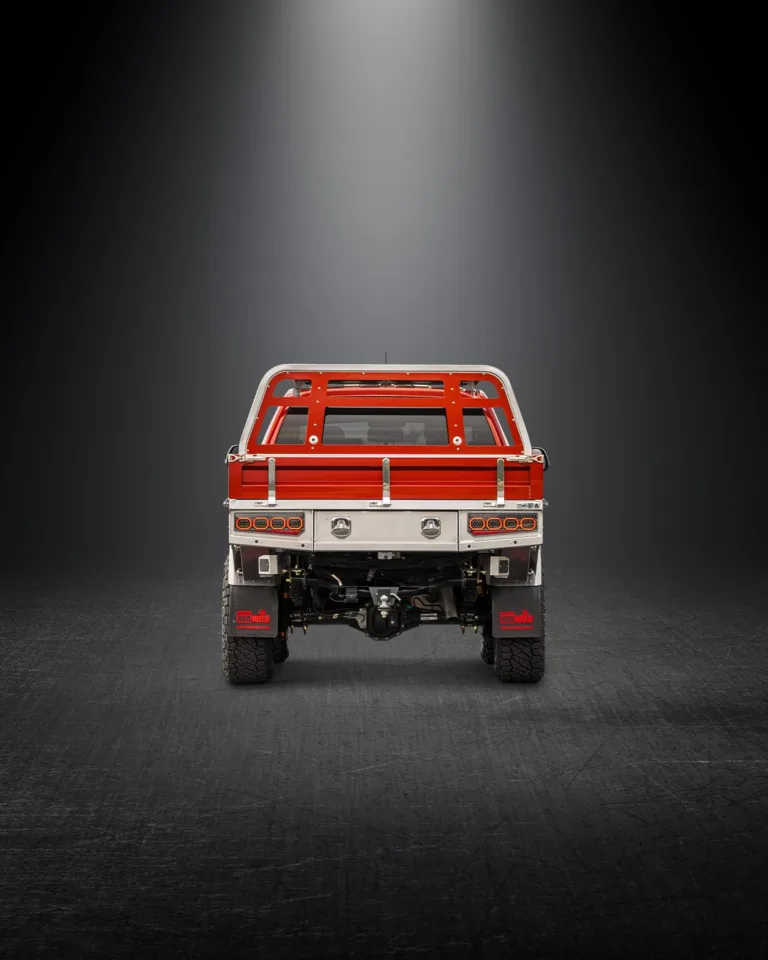

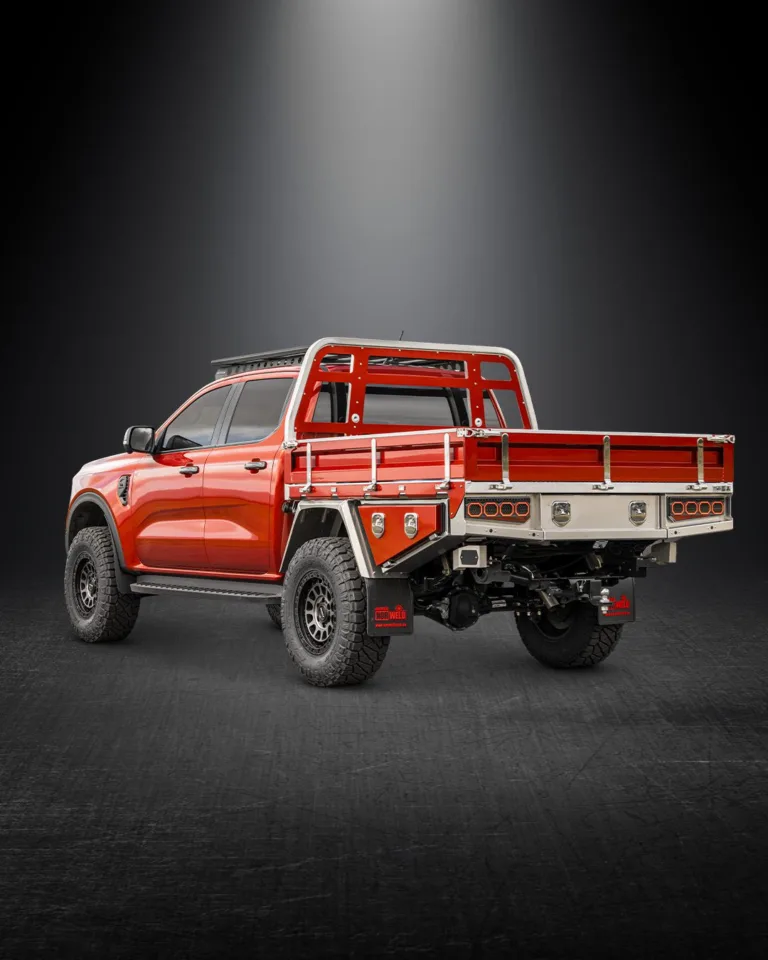

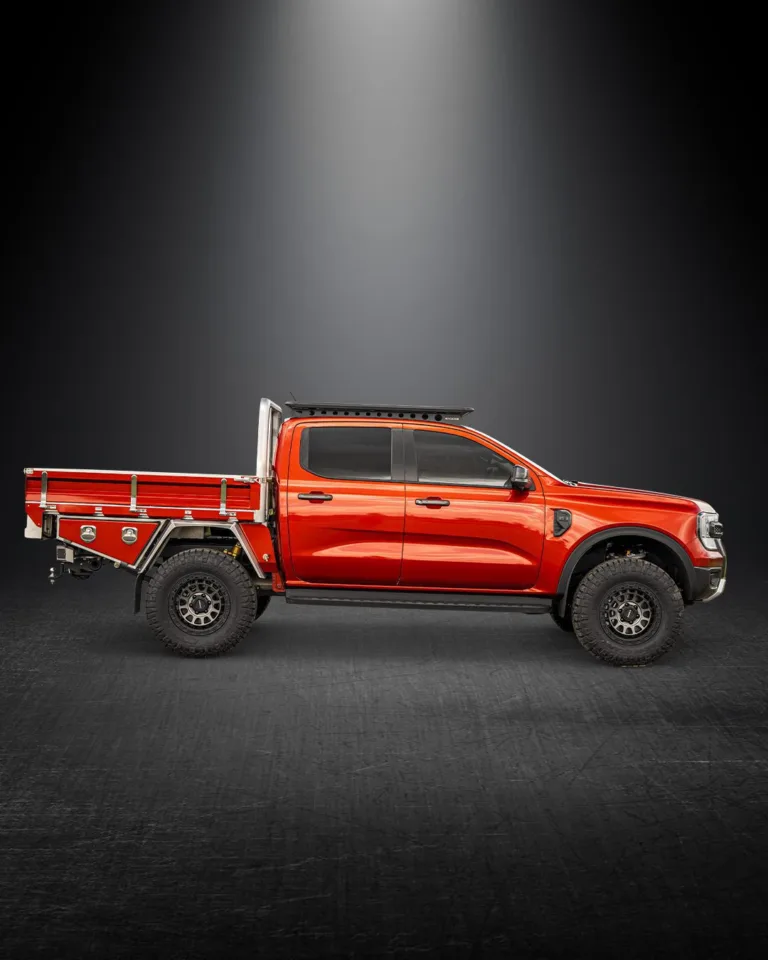

- Ford Ranger Next Gen – 2022 Onwards
- VW Amarok – Dual Cab – 2023 Onwards

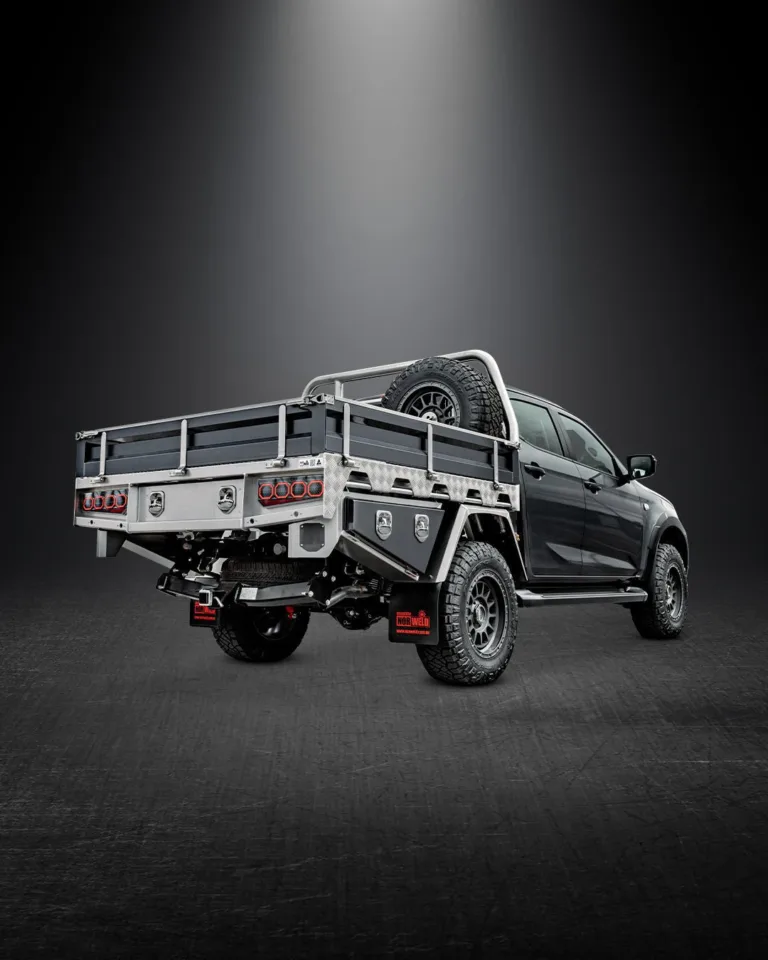

- Isuzu DMAX – Dual Cab – 2021 Onwards
- Mazda BT-50 – Dual Cab – 2021 Onwards
- Toyota Hilux – Dual Cab – 2015 Onwards
We are expecting to have the FullSize, Extra Cab and Single Cab variants available for order at some stage in the back half of the year, dates to be confirmed.
Contact your nearest Norweld branch or Norweld Agent to discuss if the Norweld Elite tray is compatible with your vehicle.
For more detailed information Elite Ute Tray.
